Sunsquare

Fabrite Solutions are pleased to be able to offer a selection of rooflight options from the Sunsquare Range.

Sunsquare provide a range of high specification bespoke skylights and roof lights, which have all been designed to achieve maximum daylight with minimal framework, as well as offering excellent thermal performance whilst maintaining sleek contemporary style.

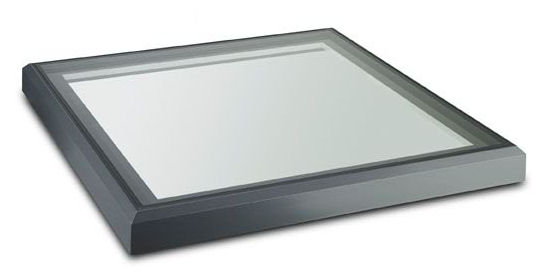

The SkyView range of fixed flat roof skylights combines industry leading thermal performance with sleek aesthetic appeal.
Manufactured from extruded aluminium profile, which is thermally broken with two polyamide insulating sections, and factory glazed with a 26mm argon filled and soft coat low E insulating glass unit, it is clear to see how the SkyView surpasses Building Regulations.
There are many glazing options available including tinted, obscured and high performance solar control glass.

The Pyramid Skylight range of fixed flat roof skylights utilises the excellent thermal performance of the SkyView Skylight with a contemporary architectural design.
The Pyramid Skylight framework is manufactured from our extruded aluminium profile which is thermally broken with two polyamide insulating sections, and is factory glazed using a 24mm argon filled and soft coat low-E insulating glass unit. All external glass edges are protected by polyester powder coated flashings.
There are many glazing options available including tinted, obscured and high performance solar control glass.
The Pyramid Skylight is available as a square unit and also as an elongated Pyramid Skylight, in both styles the glass is pitched at 45°.

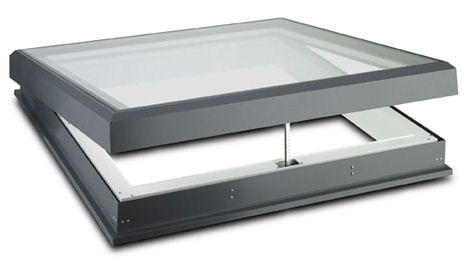

The Aero Skylight is an impeccably designed range of hinged manually opening flat roof skylights combining industry leading thermal performance with contemporary aesthetics.
The Aero range consists of Manual, Electrical and Electric Access versions, to suit a wide range of applications.
The Aero manual is fitted with a telescopic screw-jack opener, and is supplied with an anodised aluminium telescopic (1.5m-3m) operating pole. The screw-jack has an opening stroke length of 310mm.
The Aero electrical is fitted with a 230v chain driven actuator, which is completely concealed within the base frame, and opens the skylight to a maximum of 400mm. The cable for the motor exits at the bottom of the base frame behind the Decorstop detail, so that it can be invisibly routed behind the plasterboard.
The Aero Electric Access Skylight has been specifically designed to allow regular passage onto a flat roof terrace. Available up to a total of 3mē which allows for the integration of full size staircases beneath. It can also be opened to various positions to facilitate background ventilation. Optional extras include solar control glass, rain sensor and remote controls, for the complete skylight solution.
The Aero Access is also avalable as a non-electric, manually opened model. This is fitted with a pair of concealed gas struts with an internally mounted Chubb lock and handle. Once unlocked the skylight manually hinges open and is held at 85° on the gas struts. The ledge handle is then used to simply close the skylight with the lock keeping the skylight securely closed.
There are many glazing options available including tinted, obscured and high performance solar control glass.

The Horizon walk-on skylight has been designed specifically for roof terraces and areas requiring regular pedestrian access.
We also offer an internal walk-on solution "Floorlight", please call us for more details.
Manufactured from extruded aluminium profile which is thermally broken with two polyamide insulating sections, and factory glazed with a walk-on specification insulating glass unit. The latest regulations for thermal performance and safety have been surpassed by the Horizon Skylight.
The insulating glass unit can be supplied as a clear unit or with a white PVB interlayer for areas requiring privacy. The glass can also be partially or fully sandblasted to provide an anti-slip finish to the outer pane.

There are many glazing options available including tinted, obscured and high performance solar control glass.
